About Our Animal Medical Products
We strive to contribute to the development of the livestock and dairy industry through the manufacture and sale of bovine fertilized egg (embryo) transplanters.
Animal Medical Business
For the future of the livestock and dairy industry.
For the future of the livestock and dairy industry

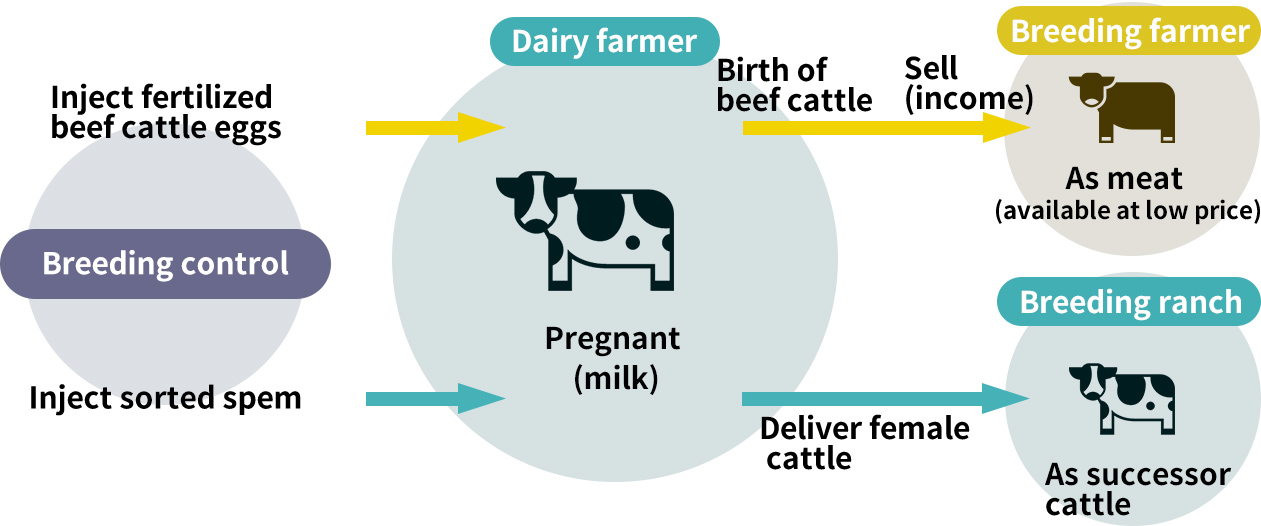

Issues
-
- Dairy cows must be impregnated in order to milk them.
-
- Male calves are considered worthless and are disposed of.
-
- Soaring feed cost impacts businesses.
-
- Shortage of dairy products due to decrease in number of dairy farmers.
Using Transplanters
Results
-
- Provide domestic meat at low price
-
- Stable supply of dairy products
-
- Stable dairy businesses

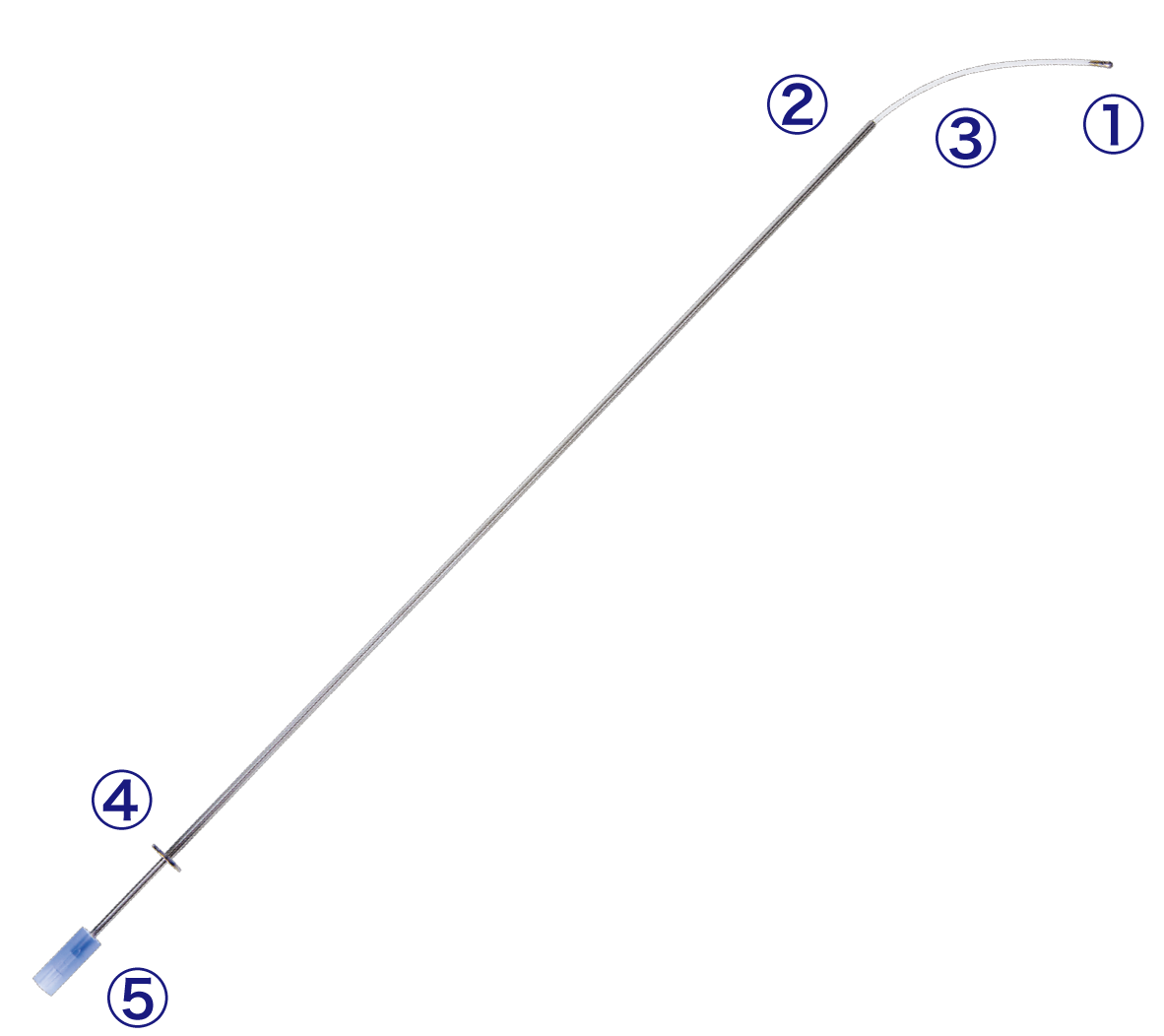

Deep-injection Fertilized Bovine Egg Transplanter
This catheter is used for injecting fertilized ova deep into the uterine horn. By extending the soft tube from the tip of the catheter, the tip softly reaches deep into the uterine horn. It is sterilized (for one-time use) and can be used immediately upon purchase. The following features provide a favorable sense of touch during transplantation.
Features

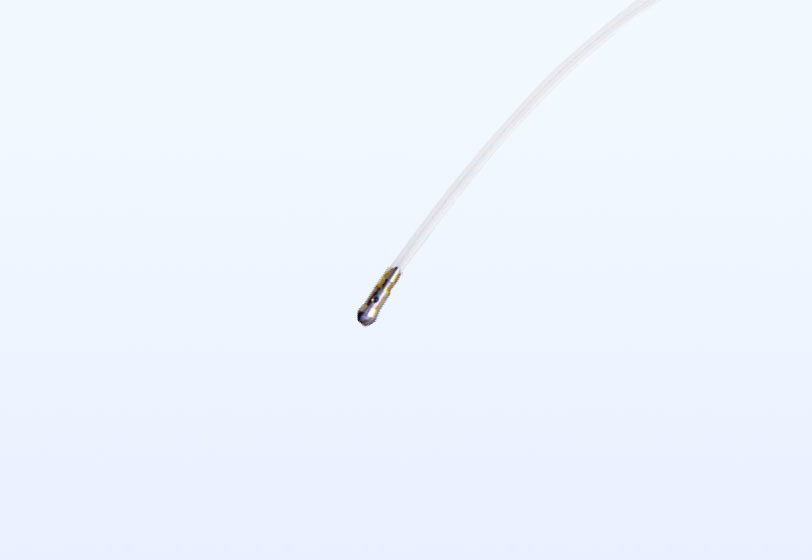

Horizontal nozzle body with round tip- The rounded tip of the nozzle reduces the risk of damaging cervical and intrauterine mucosa when passing through the cervix or operating in the uterus.

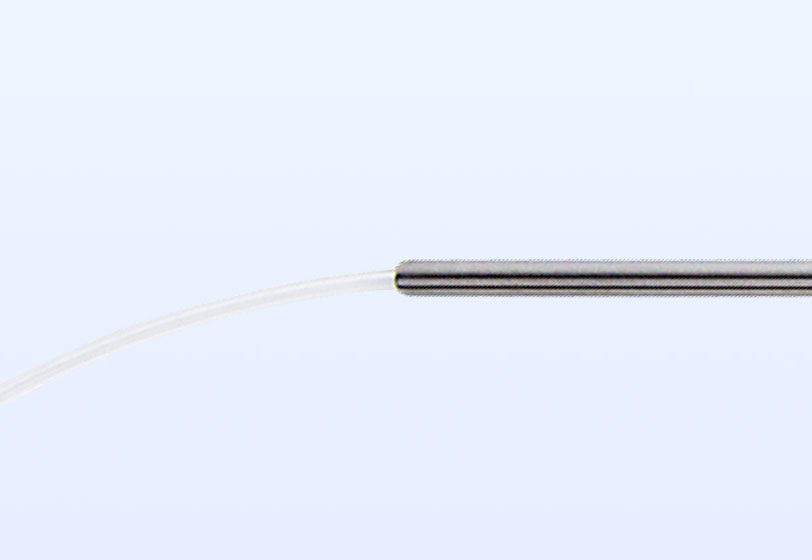

Rounding the end of the outer tube tip (R finish)- The tip of the thick SUS precision pipe is carefully rounded (R finish). This also reduces the risk of damaging cervical and intrauterine mucosa.
Deep insertion component made of soft material- Soft PVC tubing is used for the component that reaches deep into the uterus. This soft PVC tube is fixed to the inner tube of the SUS and is easy to operate because it is flexible but does not stretch excessively.
Smooth slide resistance- Low slide resistance when extending to provide a better sense of touch inside the uterus.
Silicone rubber connector- Because changes in hardness of the silicone rubber connector due to temperature are minuscule, the straw and syringe can be mounted similarly in the summer and winter.
Product Specifications
| Outer tube diameter | Φ4mm | Outer tube length | 440mm | Soft tube length | 150mm |
|---|---|---|---|---|---|
| Inner tube volume | Approx. 0.5 cc | Mountable straw | 0.25cc / 0.5cc | Nozzle hole | Φ0.8mm |
| Nozzle body material | SUS | Outer tube/inner tube material | SUS | Tube material | PVC |
| Collar material | SUS | Connector material | Silicone rubber | Sterilization method | EOG sterilization |
